Inverter Hybrid Solar Ceiling R410A Energy Saving Air Conditioner
On Grid Green Environmental Protection Hybrid AC/DC Hybrid Air Conditioner.
-
Production Capacity: 2000000units/Year
Usage: Room
-
Indoor Machine Noise:: 24-35dB
Type: Solar Air Conditioner
-
Capacity: 18,000-41,000BTU
Cooling/Heating: Cooling/Heating
Certification: CE, CCC, RoHS, UL

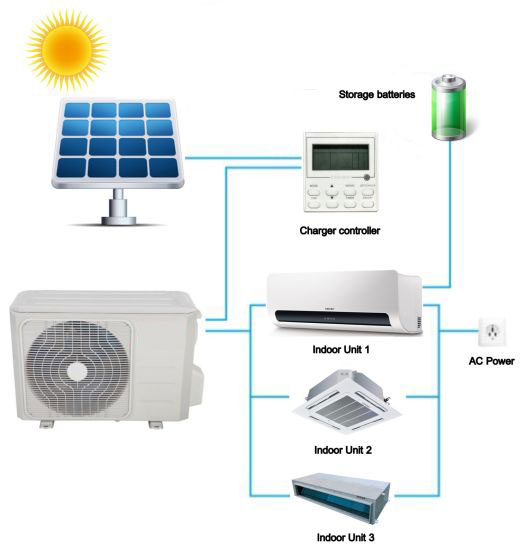

- Hybrid Solar Air Conditioning Systems with improved technological specifications to meet the increasing demand for clean energy.
- Includes batteries and battery chargers in the indoor unit thus saving installation labor and space.
- Manufactured with advanced technology, takes advantage of solar energy much more efficiently thus can work properly with one solar panel.
- Subject to the abundance of solar energy in each country.
- Software can perfectly balance between solar energy stored in the batteries and electric power, to work properly for the longest possible time even without sun.
- Available in 12,000BTU/220-240/50Hz and 60Hz
Specification list |
|||
| Model No: | KVSM-12R40a-HIS | ||
| Power Supply | Ph-V-Hz | 208-230V, 1Ph, 50Hz | |
| Cooling | Capacity (range) | Btu/h | 12000(~) |
| Input | W | 923 | |
| Rated Current | A | 4.4 | |
| EER | Btu/w | 13 | |
| SEER | Btu/w | 22 | |
| Heating | Capacity (range) | Btu/h | 12000(~) |
| Input | W | 1050 | |
| Rated Current | A | 5 | |
| COP | W/W | 3.35 | |
| HSPF4 | Btu/w | 10 | |
| HSPF5 | Btu/w | 8.5 | |
| MINIMUM CIRCUIT AMPACITY | A | 11 | |
| MAX FUSE | A | 15 | |
| Compressor | Model | ATM115D43UFZ2 | |
| Type | ROTARY | ||
| Brand | GMCC | ||
| Capacity | Btu/h | 3350W | |
| Rated current(RLA) | A | 15A | |
| Locked rotor Amp(LRA) | A | 6.15A | |
| Thermal protector | |||
| Thermal protector position | |||
| Capacitor | uF | ||
| Refrigerant oil/oil charge | ml | ESTER OIL VG74/ | |
| Indoor fan motor | Model | ZKFP-20-8-6- | |
| Input | W | 50.0 | |
| RLA | A | ||
| LRA | A | ||
| Winding Resistance | Ω | ||
| Capacitor | uF | ||
| Speed(Hi/Mi/Lo) | r/min | 850/700/500 | |
| Indoor air flow(Hi/M/Lo) | m3/h | 520/360/250 | |
| Indoor air flow(Hi/M/Lo) | CFM | 306/212/147 | |
| Indoor noise level(Hi/M/Lo) | dB(A) | 38/31.5/28 | |
| Indoor unit | Dimension(W*D*H) | mm | 802x189x297 |
| Dimension(W*D*H) | inch | #value! | |
| Packing(W*D*H) | mm | 875x285x375 | |
| Packing(W*D*H) | inch | #value! | |
| Net/Gross weight | kg | 8.6/11.2 | |
| Net/Gross weight | lbs. | #value! | |
| Outdoor fan motor | Model | ZKFN-50-8-2 | |
| Input | W | 115.0 | |
| RLA | A | ||
| LRA | A | ||
| Winding Resistance | |||
| capacitor | uF | ||
| speed | r/min | 750 | |
| Outdoor air flow | m3/h | 2500 | |
| Outdoor air flow | CFM | 1471 | |
| outdoor noise level | dB(A) | 56.5 | |

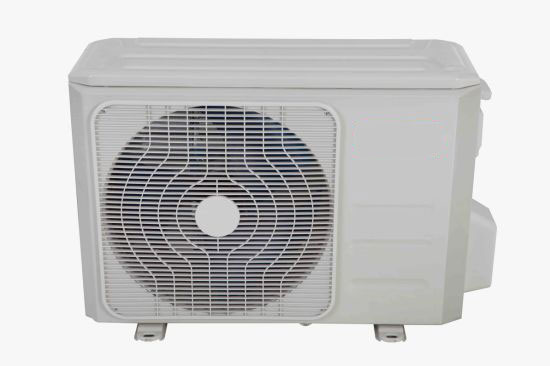

| Outdoor unit | Dimension(W*D*H) | mm | 845x363x702 |
| Dimension(W*D*H) | inch | 33.27/14.29/27.64 | |
| Packing(W*D*H) | mm | 965x395x765 | |
| Packing(W*D*H) | inch | 37.99/15.55/30.12 | |
| Net/Gross weight | kg | 52.3/55.6 | |
| Net/Gross weight | lbs. | 115.3/122.6 | |
| Refrigerant type | oz | R410A/55.4 | |
| Refrigerant precharge | ft | 25 | |
| Additional charge for each ft | oz | 0.161 6nn, 0.322 9MM | |
| Design pressure | PSIG | 550/340 | |
| Refrigerant piping | Liquid side/Gas side | mm(inch) | 6.35mm(1/4in)/12.7mm(1/2in) |
| Max.Refrigerant pipe length | m | 25 | |
| Max.Refrigerant pipe length | ft | 82 | |
| Max. difference in level | m | 10 | |
| Max. difference in level | ft | 33 | |
| Connection wiring | 16AVG Stranded, unshielded | ||
| Thermostat type | remote-controlled | ||
| Room temperature | Indoor (cooling/heating) | °C | 17~32/o~30 |
| Indoor (cooling/heating) | °F | ||
| Outdoor (cooling/heating) | °C | -15~30/-15~30 | |
| Outdoor (cooling/heating) | °F | ||
| Aplication area(cooling standard) | m2 | 16-23 | |
| Aplication area(cooling standard) | sq.ft | 172-248 | |
| Qtyper 20/40/40HQ | 75/156/159 | ||
