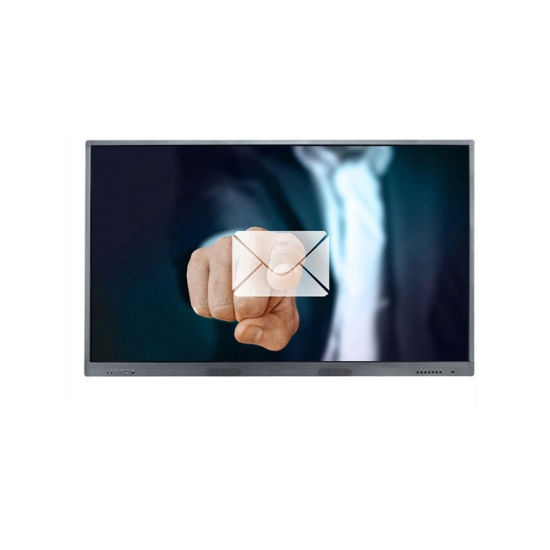

Large size 86"BOE customize touch screen table (IOS phone projector)
Ultrasonic infrared Interactive whiteboard magnetic board for business presentation and education. Board can be used for browse internet websites, build interactive flipcharts and create more opportunities for discussions and interaction.
-
Production Capacity: 50000/Year
Application: Education and Training System
Using Type:Movable With Rack
-
Material: Glass
Type: Interactive Whiteboard
-
Sides: Single Sided
Folded: Unfolded
Large size 86"BOE customize touch screen table (IOS phone projector)
Features of office whiteboard interactive touch screen:
- E-whiteboard function: making annotation on static screen and dynamic screen
- Ten point touch ,single point writting
- Dual android and windows oprating system
- Wireless screen projection interaction by android and ios mobile phone
- Built-in free teaching software, play documents and videos freely
- LG & Samsung authorized A+ grade lcd screen panel factory ,quality assurance
- 4K UHD resolution ,178 degree big view ,300 cd to 500cd/m^2 optional
Functions Of smart meeting lcd display touch screen:
- Wireless screen projection, smart interaction
- Built-in projection software, support android/IOS/MAC/Windows all platform projection
- IOS can project screen by air play to touch screen pannel, no need to install software
- Projecting device can control meeting touch screen panel, and change projector device between each other as you like
- Touch screen panel can also control the projector device,edit PC'S file (word,excel etc) on meeting touch screen.
- Support Teleconference
- Built-in Teleconferencing free software, or you can install your software on the machine
- Smart e-whiteboard touch screen for meeting/conference
- Ten-points IR touch, support making annotations not only in static interface like pictures, files etc, but also dynamic interface like video.
- Single point handwriting
- Gesture erasure
- Two points zoom in and out
- Drag and drop to switch freely.
- Support multi signal input file presentation, including HDMI, VGA, touch USB,USB,wireless screen projection.
- All signal resources making annotation
- Support HDMI ,USB,VGA etc different signal input and making annotation in any static screen.
- Android & Windows Dual oprating system
- Default Android system,
- Support pluggable OPS windows operating system
- One button Swich Android & Windows
- Suitable for all main brand OPS , pluggable design provide simpler maintenance and easier PC upgrade
- Document intelligent classification
- Intelligent identification of various signal sources, pictures, videos, audio, documents, etc
- Scan QR code to download annotation/notes
- Audio and video synchronization at same time. more vivid teaching.
- Built-in speaker and high resolution 4K screen display
- Different size available: 55" 65" 70" 75" 86" 98"

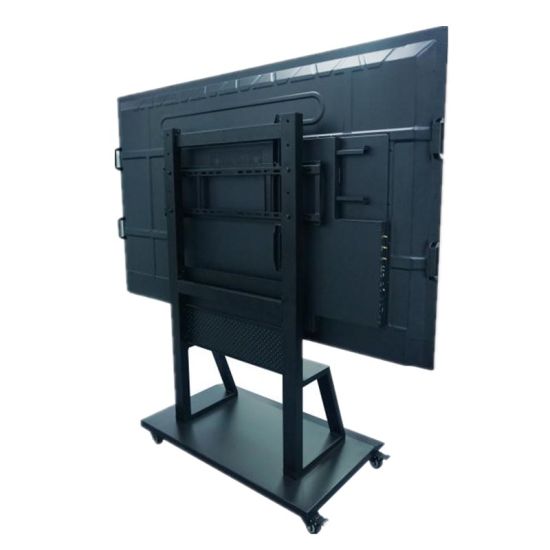

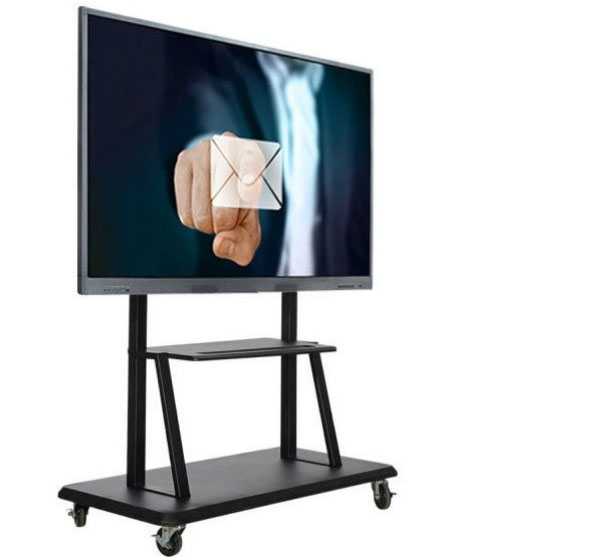

- Wall-mount or movable stand flexible installment .
- other functions like android system: surf internet, multi-task management, setting, pull-up quick setting menu etc.
Specification Of Screen/System
| specification | type | parameter | |
| Panel | LCD Size | 65" | |
| Light source | LEDbacklight | ||
| Resolution | 3840 x 2160pixels | ||
| Brightness | 350cd/m²(typ.) | ||
| Contrast ration | 4800:1(typ.) | ||
| Pixel pitch | 0.372mm x 0.372mm | ||
| Frame rate | 60Hz | ||
| Viewing Angle | 178°(H)/178°(V) | ||
| Life | 30,000hrs(min.) | ||
| Color saturability | 70 % | ||
| Visual area | 1428.48 (H)mm x 803.52(V)mm | ||
| Display colors | 1.07b | ||
| Android | CPU | Architecture | 64 bit A53 |
| Working frequency | 1.2GHZ | ||
| Number of cores | Quad-core | ||
| RAM | DDR3: 1G ; eMMC:8G | ||
| Version | 5.1.1 | ||
| Power | Voltage | Rated 100-240V , Max. 90-264V~50/60Hz | |
| Max. power consumption | ≤150W | ||
| Standby power consumption | <0.5W | ||
| Speaker | 2 x 10W(max) | ||
| Power supply (AC) input | 100-240V | ||
| Environment | Working temperature | 0ºC~40ºC | |
| Storage temperature | -20ºC~60ºC | ||
| Working humidity | 10%-90%No condensation | ||

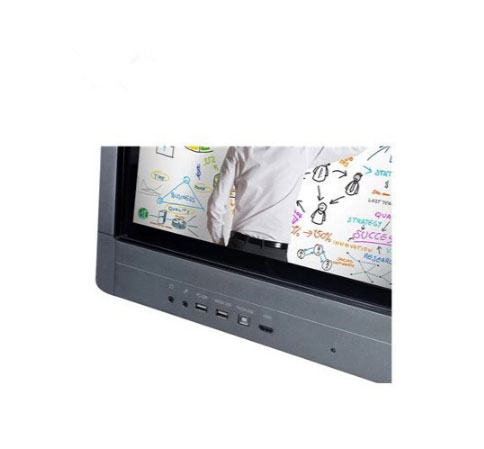

LCD Advertising Displayer Input/Output Interface
| Input Interface |
LAN In Interface | 1 |
| DP Interface | 1 | |
| HDMI Interface | 2 | |
| VGA Interface | 1 | |
| PC-AUDIO Interface | 1 | |
| YPBPR Interface | MINI x 1 | |
| AV In Interface | MINI x 1 | |
| USB2.0 | 1 | |
| USB3.0 | 1 | |
| TOUCH-USB | USB2.0 x 1 | |
| Output Interface |
AV Out Interface | MINI x 1 |
| EARPHONE Interface | 1 | |
| OPTICAL Interface | 1 | |
| LAN Out Interface | 1 |
Touch Screen Glass Specification
| Touch Panel | Touch specification | Non contact infrared touch technology, support 10 points |
| Glass | 4MM Physical tempered glass | |
| Glass transmittance | >92% | |
| Frame material | Aluminium alloy face frame,PCBA | |
| Response time | Single point : Click 13ms continuous 3ms Multipoint : Click 13ms, continuous 5-10ms Two point touch at the same time: click 10ms |
|
| Positioning accuracy | ≤2mm | |
| Input method | opaque objects (such as fingers, pens, etc.) | |
| Theoretical clicks | more than 60 million times in the same position |
|
| Min touch | ≥ 5MM | |
| Light resistance | Incandescent lamp (220V,100W), vertical distance above 350mm, the illuminanceof solar radiation reaches 90000Lux |
|
| Power supply | USB(USB Power supply) | |
| Supply voltage | DC 5.0±5% |
Application:
- Education: school\university\training school
- Conference system: telecommunication-conference system
- Commercial: Outlets\ showroom\ 4S shops display\ queen management system\building info. checking system
Optional
- Available size: 65" 70" 75" 86" 98"touch screen kiosk,
- Windows system: supports customized windows 8.1/10 OS
- Touchscreen: supports customized IR touch (10 points)/capacitive touch (10 points)
- Optional: 3/4G module, camera, NFC, beacon, thermal printer, magic mirror
