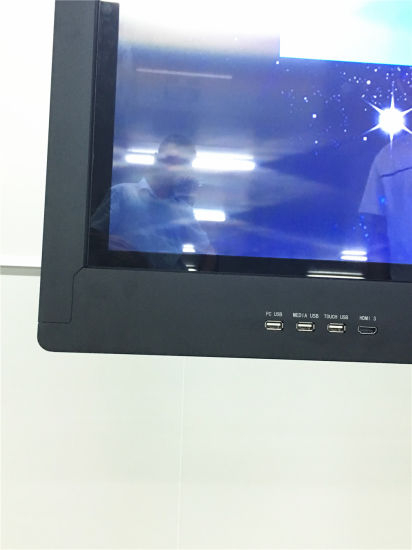

Screen marking pen all-in-one PC interactive whiteboard 65"
Ultrasonic infrared Interactive whiteboard magnetic board for business presentation and education. Board can be used for browse internet websites, build interactive flipcharts and create more opportunities for discussions and interaction.
-
Production Capacity: 50000/Year
Application: Education and Training System
Screen Size: >60 Inches
-
Installation: Wall-Mounted/Mobile with Rack
Type: Interactive Whiteboard
-
Sides: Single Sided
Folded: Unfolded
Screen marking pen all-in-one PC interactive whiteboard 65"
Features:
- New A+ grade LCD panel from Samsung and LG
- Super slim bezel design and stylish design
- 4k resolution and 178 degree full viewing angle
- Infrared touch (IR touch) with 10 points touch
- High-grade metal cabinet
- Strong protective glass on the surface, waterproof (some model do not have)
- Android 4.4 OS dual-core CPU 8G RAM ,built-in Wi-Fi
- Supports standard RJ45 cable network connection and wireless network connection
- With USB/HDMI/RJ45/SD card
- Various numbers of applications and games under Android OS supported
Functions Of smart meeting lcd display touch screen:
- Built-in Android/Windows system:system will recognize and catogory different file (audio,office files,pictures etc)
- One button enter into energy-saving model or power on off or change signal source
- Support OPS (optional) expand to optimize computer
- Signal source intelligent identification,when signal input,equipment changed into related channel,no need to adjust manually
- Black screen green energy saving function:one button turn off the backlight of LCD screen without turning off the power supply,click screen or press any button to wake up backlight,easy control
- TV function
- Can be used as advertising machine
- Built-in audio
- Interactive Whiteboard function: 10points IR touch ,easy to write and erase(wiping gesture), support 2 points zoom in/out,dragging.
- Making notes:support to making notes.
Specification Of Screen/System
| specification | type | parameter | |
| Panel | LCD Size | 65" | |
| Light source | LEDbacklight | ||
| Resolution | 3840 x 2160pixels | ||
| Brightness | 350cd/m²(typ.) | ||
| Contrast ration | 4800:1(typ.) | ||
| Pixel pitch | 0.372mm x 0.372mm | ||
| Frame rate | 60Hz | ||
| Viewing Angle | 178°(H)/178°(V) | ||
| Life | 30,000hrs(min.) | ||
| Color saturability | 70 % | ||
| Visual area | 1428.48 (H)mm x 803.52(V)mm | ||
| Display colors | 1.07b | ||
| Android | CPU | Architecture | 64 bit A53 |
| Working frequency | 1.2GHZ | ||
| Number of cores | Quad-core | ||
| RAM | DDR3: 1G ; eMMC:8G | ||
| Version | 5.1.1 | ||
| Power | Voltage | Rated 100-240V , Max. 90-264V~50/60Hz | |
| Max. power consumption | ≤150W | ||
| Standby power consumption | <0.5W | ||
| Speaker | 2 x 10W(max) | ||
| Power supply (AC) input | 100-240V | ||
| Environment | Working temperature | 0ºC~40ºC | |
| Storage temperature | -20ºC~60ºC | ||
| Working humidity | 10%-90%No condensation | ||
LCD Advertising Displayer Input/Output Interface
| Input Interface |
LAN In Interface | 1 |
| DP Interface | 1 | |
| HDMI Interface | 2 | |
| VGA Interface | 1 | |
| PC-AUDIO Interface | 1 | |
| YPBPR Interface | MINI x 1 | |
| AV In Interface | MINI x 1 | |
| USB2.0 | 1 | |
| USB3.0 | 1 | |
| TOUCH-USB | USB2.0 x 1 | |
| Output Interface |
AV Out Interface | MINI x 1 |
| EARPHONE Interface | 1 | |
| OPTICAL Interface | 1 | |
| LAN Out Interface | 1 |
Touch Screen Glass Specification
| Touch Panel | Touch specification | Non contact infrared touch technology, support 10 points |
| Glass | 4MM Physical tempered glass | |
| Glass transmittance | >92% | |
| Frame material | Aluminium alloy face frame,PCBA | |
| Response time | Single point : Click 13ms continuous 3ms Multipoint : Click 13ms, continuous 5-10ms Two point touch at the same time: click 10ms |
|
| Positioning accuracy | ≤2mm | |
| Input method | opaque objects (such as fingers, pens, etc.) | |
| Theoretical clicks | more than 60 million times in the same position |
|
| Min touch | ≥ 5MM | |
| Light resistance | Incandescent lamp (220V,100W), vertical distance above 350mm, the illuminanceof solar radiation reaches 90000Lux |
|
| Power supply | USB(USB Power supply) | |
| Supply voltage | DC 5.0±5% |
Application:
- Education: school\university\training school
- Conference system: telecommunication-conference system
- Commercial: Outlets\ showroom\ 4S shops display\ queen management system\building info. checking system
Optional
- Available size: 65" 70" 75" 86" 98"touch screen kiosk,
- Windows system: supports customized windows 8.1/10 OS
- Touchscreen: supports customized IR touch (10 points)/capacitive touch (10 points)
- Optional: 3/4G module, camera, NFC, beacon, thermal printer, magic mirror
